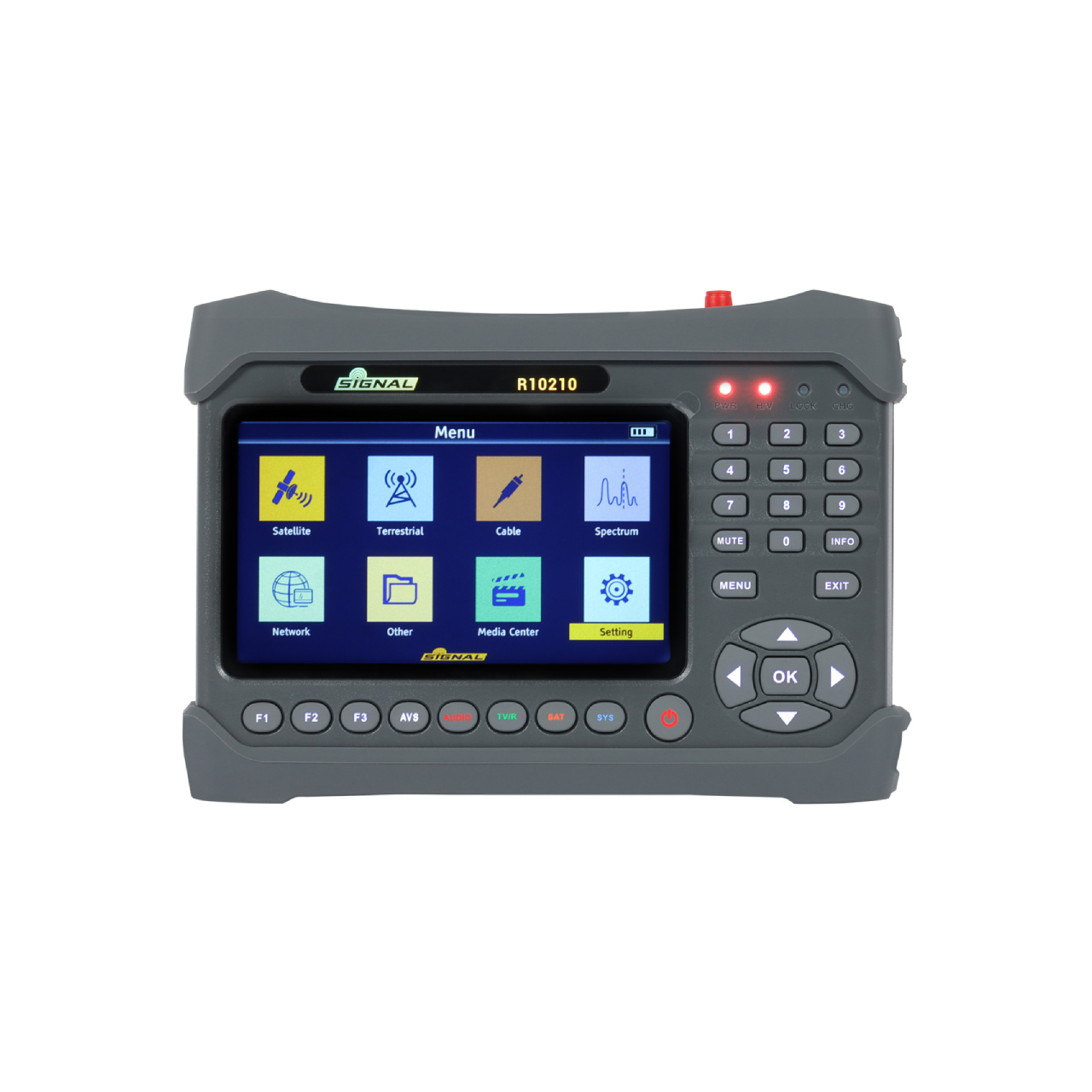

Mjerni instrument Signal 4.3″ COMBO DVBS/S2 DVB-T/T2/C H.265 HEVC



Mjerni instrument Signal COMBO DVBSS2 DVB-T/T2/C H.265 HEVC.. 4.3 ekran.  HDMI OUT. U kompletu kučni punjač, auto punjač i torbica.

Instrument prikazuje živu sliku sa satelita i zemaljske TV.

Key features

Measurement of DVB-T/T2/C and DVB-S/S2 signals (fully compatible with MPEG-2/MPEG-4)DVB-T2 support with H.265monitoring of the analyzed channel on an LCDbuilt-in video decoder: MPEG-2/H.264/H.265percentage indication of signal strength and qualitymeasurement of all required parameters such as: signal level in dBμV, C/N, BER, MER7.4 V/2600 mAh Li-Ion batteryeditable satellites, transponders, frequenciesDiSEqC: 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), wideband supportUSB port (file format supported: wma,mp3,mp4,avi,jpg,jpeg,bmp,img)short-circuit protection in satellite path (LNB)

The ST-5150 R10842 meter measures satellite DVB-S/DVB-S2 (HD), terrestrial DVB-T/DVB-T2 (HD) and cable DVB-C signals. It has a color TFT LCD display. The meter is ideal for setup of every TV and SAT TV antenna system. The applications include positioning of satellite dishes and terrestrial antennas, tuning of filters, adjustment of settings of amplifiers. Thanks to built-in receiver, the user can monitor the currently tested FTA channel. The monitoring of the tested channels and intuitive operation accelerate installation work. An unquestionable advantage of the device is a user-friendly menu, making easier the work of users without much experience in this field. An external HDMI output can feed the received channel to a TV/monitor screen via a cable. The device allows the user to measure such parameters as signal level expressed in dBμV, C/N and MER parameters.

Specifications



Product type Meter
Type Combo
Model ST-5150
Brand Signal
Head DVB-S/S2 YES
DVB-T/T2 YES
DVB-C YES
Monitoring of channels TFT display pixels 480×272
Video decoding MPEG-2,
MPEG-4, H265

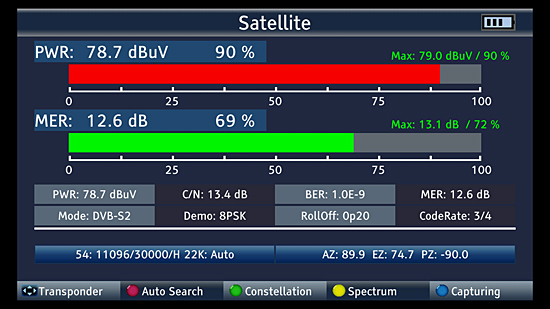

FM/TV signal measurement Parameters dBμV, dBm, % PWR
dB MER
Post BER
dB C/N
Device specifications
Receiver
DVB-T/T2/C
Frequency range MHz 48…862
Signal strength dBm max. -79.5
Antenna supply V 5, 12, 24 (max. 100 mA)
Connector F-socket
Receiver
DVB-S/S2
Frequency range MHz 950…2150
Signal strength dBm -65…-25
Control signals 0/22 kHz, DiSEqC 1.0, 1.1,1.2 Unicable (dSCR), Wideband
LNB supply V 13/18 (max. 400 mA)
Connector F-socket
General
Connectors LNB, RF, USB, DC IN, DC OUT
HDMI, in/out AV
Battery Li-Ion 7.4 V mAh 2600
Warranty 12 months
Power consumption W max. 10
Accessories AC/DC adapter, F-F socket
Weight kg 1
Dimensionsmm170x120x40
